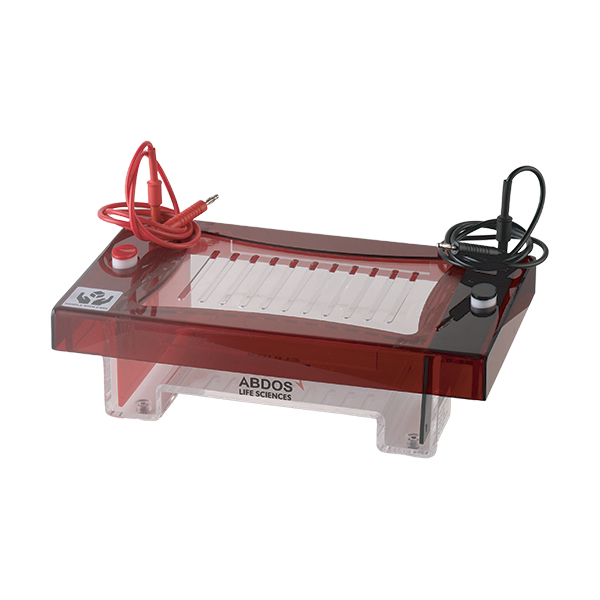

ABDOS MidiAGE Horizontal Electrophoresis

Abdos Midi Horizontal Electrophoresis offers a wide range of applications such as rapid screening of clonal or PCR products,
restriction fragment analysis and other close molecular weight bands separation.
Height adjustable combs offer complete control over the depth of the wells and sample loading capacity.

Code	Product	No. / Case
E12150	Midi Horizontal System includes Basic unit with Removable Platinum Electrode Assembly, Gel Running tray of 15x15cm (1 No.), 1mm thick 4 combs of 16 & 20 Wells, casting unit & connecting Cord (1 Pair)	1

Code	Product	No. / Case
E12181	Gel Running Tray 15X15 Cm	1
E12182	Gel Running Tray 15X10 Cm	1
E12183	Gel Running Tray 15X7 Cm	1
E12184	16 Well Height Adjustable Comb 1 mm	1
E12193	16 Well Height Adjustable Comb 1.5 mm	1
E12185	20 Well Height Adjustable Comb 1 mm	1
E12189	20 Well Height Adjustable Comb 1.5 mm	1
E12186	28 Well Height Adjustable Comb 1 mm	1
E12194	28 Well Height Adjustable Comb 1.5 mm	1
E12187	Gel Casting Tray	1
E12188	Connecting Cord	1 Pair
E12197	Negative Electrode casing with wire & Electrode	1
E12198	Positive Electrode casing with wire & Electrode	1

Descriptions

Abdos Midi Horizontal Electrophoresis offers a wide range of applications such as rapid screening of clonal or PCR products,
restriction fragment analysis and other close molecular weight bands separation.
Height adjustable combs offer complete control over the depth of the wells and sample loading capacity.
16 well combs that allow easy loading from 96 well PCR & Microtiter plates in the wells.
UV Transparent Gel Trays can directly be put over the UV Transilluminator.
Easy to replace removable electrode casing.

CE Certified

Yes

Dimensions (WxLxH)	31×18.5×9.5 cm
Construction Material	Acrylic
Gel Size (WxL)	15 x 15 cm
Buffer Required	600 ml
Platinum Electrodes	1 set anode & cathode removable electrode casing
Standard Combs	16 & 20 well height adjustable combs (2 Nos Each), 1mm thick
Maximum sample capacity	112 samples
Comb Slots	4
Gel Casting Tray	Included as standard
Connecting Cord	1 Pair (Red & Black) included as standard
